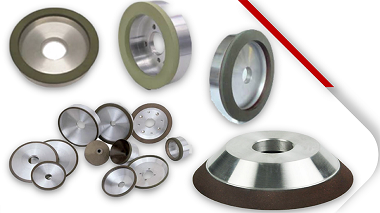

Diamond Grinding Wheel

Full name: Diamond Vitrified Dressing Wheel,  Resin diamond grinding wheel, PCD Grinding Wheel, Diamond wheel, grinding wheel, Diamond Grinding roller

Adhesive: Vitrified, resin

Process product: Grinding PCD, CVD, PCBN, carbide, ceramic tools and other cutting tools such as milling cutters, drills, reamers, etc.

Product Description

Advantage of Halnn Diamond Grinding Wheels

1. The grinding wheel has good sharpness, high processing efficiency

2. The full Specifications and granularity, and can provide the customized Wheels

3. Have rich manufacturing wheels experience, can provide the suitable solutions



6A2 Cup diamond grinding wheel is widely used for grinding PCD Tools, PCBN Inserts, Carbide Tools, ceramics and other non-metallic materials.

D(mm)

T(mm)

H(mm)

W(mm)

X(mm)

6A2 Diamond grinding wheel.jpg

50

13, 20, 25

10

3, 5, 6

1.5, 3, 5

75

20, 25

20

3, 5, 6, 10

3, 5

100

20, 32, 35, 40

32, 40

3, 5, 6, 10, 12

3, 5, 10

125

20, 32, 40

31.75, 32, 40

3, 5, 10, 15, 20

3, 510

150

20, 32, 40

32, 40

3, 5, 10, 15, 20, 25

3, 5, 10

175

40

32, 40

3, 5,10, 15, 20, 25

3, 5, 10

200

40

32, 40

10, 15, 20, 25

3, 5, 10



12V2, 12V9, 11A2 Bowl Diamond Grinding Wheel special to use rough, medium, semi-finish and finish grinding  PCD and PCBN tools.


D(mm)

T(mm)

H(mm)

W(mm)

X(mm)

75

25, 40

20

2,5,10

5,10

100

25, 40

32,40

3,5,10,20

5,10

125

25, 40

32,40

3,5,10

5,10

150

25, 40

32,40

3,5,10,15,20

5,10

200

30, 40, 50

32, 40

15,20,25

10



3A1, 4B1 and 4A9 Ultra-precision grinding wheel

3A1

3A1 Diammond grinding wheel.JPG

D (mm)

T (mm)

H (mm)

X (mm)

U(mm)

100

6

20,31.75

6

1,4

125

8

20,31.75

6,8

4,1.5

150

6,8

20,31.75

6,8

4,2

 4B1 and 4A9

D(mm)

T(mm)

H(mm)

W(mm)

X(mm)

80

6

20, 25

10

6

100

8

20, 31.75

10

6

150

8, 24

20, 31.75

4, 6, 10

2, 3, 6

200

20

20,31.75

6

3,6

250

20

20,31.75

8

6,8
