Milling cast iron CBN inserts

Full name: Milling cast iron CBN inserts

Machining Hardness Range: HRC35-HRC68, HT200/250

Machining Materials: Chilled cast iron, high-alloy cast iron, wear-resistant cast iron, heat-resistant alloy, high manganese steel, Grey Cast iron, iron-based sintered alloy, etc.

Machining Type: Both rough milling and finish milling

Continuous and interrupted processing possible

Click on the consulting

Product Description

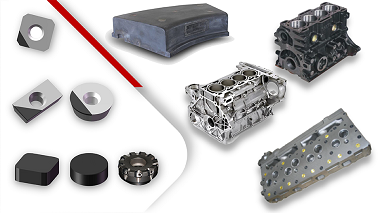

Recommend milling Cast iron CBN inserts


SNFN	CNFN	RNFN	SNEN	SNEX	RNEN

OPHN	RDMW	APMT	SEET

Milling Cutters/Holders Series

φ63 milling cutter φ125 milling cutter φ160 milling cutter

Diameter 63 Diameter 125 Diameter 160

Note: Customers provide drawing or size requirements, Halnn will provide customized services.

Application fields

Material: high chromium cast iron, nickel hard cast iron, high nickel chromium alloy, chilled cast iron, white cast iron, etc.;

Industry: construction machinery, heavy industry machinery, power equipment, mining machinery and other industries;

Workpiece: slurry pump, impeller, liner, Cone Crusher, etc.;

Cutting Parameters

Machining material	Recommended cutting parameters			CBN insert Grade
Machining material	Cutting speed VC(m/min)	Cutting Depth ap (mm)	Feed Rate Fr(mm/r)	CBN insert Grade
High hardness cast iron (HRC35-68)	35-120(Rough milling)	1-4	0.15-0.45	BN-K1
High hardness cast iron (HRC35-68)	60-180(Finish milling)	≤1	0.05-0.35	BN-K1
Grey cast iron	450-2000(Finish milling)	≤1.5	0.05-0.3	BN-S300, BN-S200, BNK30

Application cases

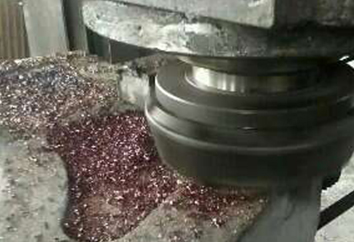

Workpiece: Lining plate
Material: High chromium cast iron
Insert Type: BN-K1 SNFN120712
Cutting parameters: N=85r/min, Fr=0.4mm/r, ap=3mm
Processing method: dry cutting

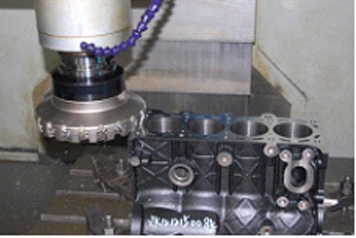

Workpiece: Engine Block
Material: FC250(HB170~210)
Insert Type: BN-S300 SNEN090308
Cutting parameters: Vc=1700 m/min, ap=0.3mm, fz =0.12mm/r
Processing method: dry cutting
Insert grade	Feed Rate	Tool Life/blade
Halnn BN-S300	3670mm/min	85 pieces
Some brand CBN	3670mm/min	80 pieces
