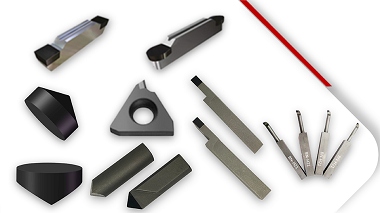

CBN Boring/Grooving Tools
share:

CBN Boring/Grooving Tools

Full Name: CBN grooving tools, CBN Boring Tools, CBN Boring inserts

Application industry: Automobiles, air-conditioning compressors, etc.

Processing material: Cast iron, Hardened steel, powder metallurgy and other ferrous metals

Processing parts: external grooves, end grooves, inner hole grooves

Product Description

Advantages of Halnn CBN Grooving/Boring Tools

1. Support various non-standard customized.

2. Standard products are delivered quickly.

3. High processing efficiency.

4. Excellent abrasion resistance


Standard CBN Grooving / Boring Tools

Drawing

Order Code

Cutting Edges

Dimensionmm


W

R

CBN grooving tools MRGN

MRGN200-R1.0

12

2

1.0

CBN grooving inserts MRGN

MRGN300-R1.5

12

3

1.5

MRGN400-R2.0

12

4

2.0

MRGN500-R2.5

12

5

2.5

MRGN600-R3.0

12

6

3.0

CBN grooving tools MGGN

MGGN200-02

12

2

0.2

CBN grooving inserts MGGN

MGGN250-02

12

2

0.2

MGGN300-020408

12

3

020408

MGGN400-020408

12

3

020408

MGGN500-020408

12

3

020408

MGGN600-020408

12

4

020408


Drawing

Order Code

 Cutting Edge

Dimensionmm


ΦI.C

S1

W

La

r

CBN Grooving TGR L Halnn

TGR/L-1.25

1, 2, 3

12.7

4.76

1.25

2.5

0.2

CBN Grooving TGR L inserts Halnn

TGR/L-1.50

1, 2, 3

1.50

3.9

TGR/L-2.00

1, 2, 3

2.00

3.9

TGR/L-2.50

1, 2, 3

2.50

5.4

0.3

TGR/L-3.00

1, 2, 3

3.00

5.4

TGR/L-3.50

1, 2, 3

3.50

5.4

0.4

TGR/L-4.00

1, 2, 3

4.00

5.4


Note: Grooving Inserts and corresponding tool holder can be offered based on the dimension requirements, please fill the following form, then you can obtain the solutions and the quotation. About selected the insert materials, you can consult our engineer.


 Shape

 Item

 Content

CBN grooving tools Shape

Blade Width CWmm




Blade Radius Rmm




Machining Materials




Groove Depth  Hmm


Machining Part

a. Cylindrical Groove

b. Internal Groove

c. Endsurface Groove

Tool Holder Length*Squaremm



Non-standard CBN Grooving / Boring Tools

Customers provide drawing requirements,  Halnn will provide customized services

Order Code

 Dimensionmm

 Drawing

L

W

H

R

HG01-1.0

70

1.0

12

0.1, 0.2, 0.3

HG01 CBN grooving tools

HG01-1.5

70

1.5

15

0.1, 0.2, 0.3

HG01-2.0

70

2.0

18

0.1, 0.2, 0.3

HG01-2.5

70

2.5

20

0.1, 0.2, 0.3



Order Code

Dimensionmm

Drawing

L

B

W

a1

a2

H

HG02-4.0

70

1.575

4

7°30′

15°±5′

12, 15, 18, 20

HG02 CBN grooving tools

HG02-5.0

70

2.058

5

7°30′

15°±5′

12, 15, 18, 20


CBN Grooving / Boring Tools

Drawing

Type

Dimensionmm

F

A

B

R

L

L1

customized CBN Grooving tools

1.5mm

1.5

φ6

5.7

0.2

50

8

2mm

2

φ6

5.7

0.2

50

10

2.5mm

2.5

φ6

5.7

0.2

50

10



 Drawing

Order Code

 Dimensionmm

W

H

L

E

R

CBN grooving inserts HTW

HTW10-30°-R/L

10

10

80

0

0.2-0.5

HTW13-30°-R/L

13

13

100

4

HTW16-30°-R/L

16

16

120



 Drawing

Order Code

 Dimensionmm

W

H

L

R

 HTW CBN Grooving inserts

HTW10-N

10

10

80

0.3-0.5

HTW13-N

13

13

100

HTW16-N

16

16

120

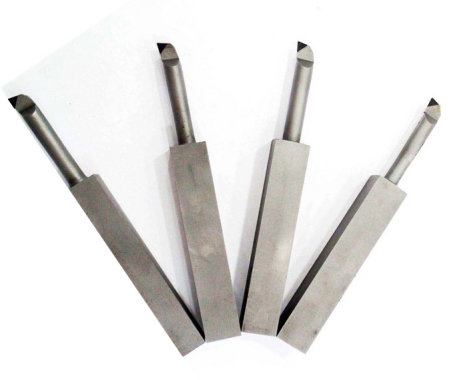

High Precision Internal Cutter (Special for small hole)



 Order Code

  Dimensionmm

Drawing

φD

h

H

L

E

HBφ4-N

4

3

3.5

16

2

CBN boring inserts HB

HBφ5-N

5

3.5

4

20

2.5

HBφ6-N

6

4

5

25

3

HBφ8-N

8

6

7

35

4

HBφ10-N

10

7

9

50

5

Note: Customers provide drawing requirements,  Halnn will provide customized services.


CBN grooving boring inserts




Related Product Link:Auto parts solution
