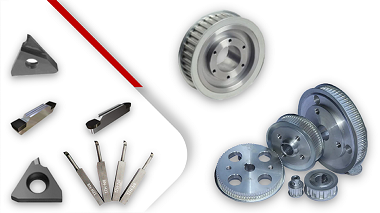

Grooving/Boring Hardened Steel

Grooving/Boring Hardened Steel

Full Name: CBN Boring Inserts, CBN Grooving Inserts, Boring hardened steel inserts, hardened steel Boring tools, hardened steel turning tools

Machining Materials: Hardened Steel, High Hardness Steel, Bearing steel, Die steel

Using Inserts type: MGGN, MRGN, TGR/L, HG, HTW

Processing Way: Grooving, Boring

Click on the consulting

Product Description

Advantages of Halnn CBN Grooving/Boring Tools

1. Support various non-standard customized.

2. Standard products are delivered quickly.

3. High processing efficiency.

4. Excellent abrasion resistance

Standard CBN Grooving / Boring Tools

Drawing	Order Code	Cutting Edges	Dimension（mm）		Picture
Drawing	Order Code	Cutting Edges	W	R	Picture
	MRGN200-R1.0	1, 2	2	1.0
	MRGN300-R1.5	1, 2	3	1.5
	MRGN400-R2.0	1, 2	4	2.0
	MRGN500-R2.5	1, 2	5	2.5
	MRGN600-R3.0	1, 2	6	3.0
	MGGN200-02	1, 2	2	0.2
	MGGN250-02	1, 2	2	0.2
	MGGN300-02, 04, 08	1, 2	3	02, 04, 08
	MGGN400-02, 04, 08	1, 2	3	02, 04, 08
	MGGN500-02, 04, 08	1, 2	3	02, 04, 08
	MGGN600-02, 04, 08	1, 2	4	02, 04, 08

Drawing	Order Code	Cutting Edge	Dimension（mm）					Picture
Drawing	Order Code	Cutting Edge	ΦI.C	S1	W	La	r	Picture
	TGR/L-1.25	1, 2, 3	12.7	4.76	1.25	2.5	0.2
	TGR/L-1.50	1, 2, 3			1.50	3.9
	TGR/L-2.00	1, 2, 3			2.00	3.9
	TGR/L-2.50	1, 2, 3			2.50	5.4	0.3
	TGR/L-3.00	1, 2, 3			3.00	5.4	0.3
	TGR/L-3.50	1, 2, 3			3.50	5.4	0.4
	TGR/L-4.00	1, 2, 3			4.00	5.4	0.4

Non-standard CBN Grooving / Boring Tools

Customers provide drawing requirements, Halnn will provide customized services

Order Code	Dimension（mm）				Drawing
Order Code	L	W	H	R	Drawing
HG01-1.0	70	1.0	12	0.1, 0.2, 0.3
HG01-1.5	70	1.5	15	0.1, 0.2, 0.3
HG01-2.0	70	2.0	18	0.1, 0.2, 0.3
HG01-2.5	70	2.5	20	0.1, 0.2, 0.3

Order Code	Dimension（mm）						Drawing
Order Code	L	B	W	a1	a2	H	Drawing
HG02-4.0	70	1.575	4	7°30′	15°±5′	12, 15, 18, 20
HG02-5.0	70	2.058	5	7°30′	15°±5′	12, 15, 18, 20

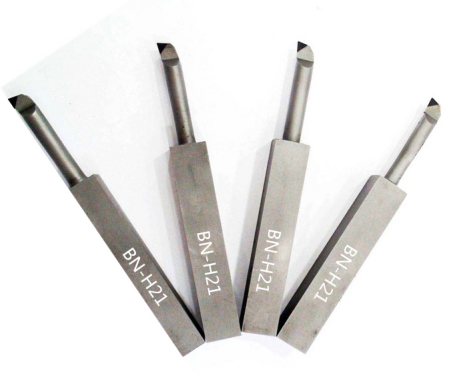

CBN Grooving / Boring Tools

Drawing	Order Code	Dimension（mm）
Drawing	Order Code	W	H	L	E	R
	HTW10-30°-R/L	10	10	80	0	0.2-0.5
	HTW13-30°-R/L	13	13	100	4
	HTW16-30°-R/L	16	16	120	4

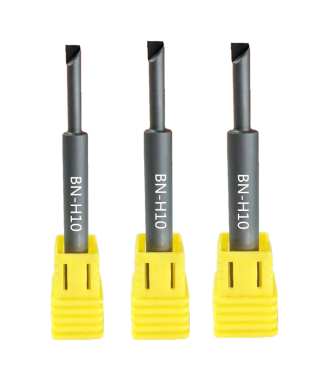

High Precision Internal Cutter (Special for small hole)

Order Code	Dimension（mm）					Drawing
Order Code	φD	h	H	L	E	Drawing
HBφ4-N	4	3	3.5	16	2
HBφ5-N	5	3.5	4	20	2.5
HBφ6-N	6	4	5	25	3
HBφ8-N	8	6	7	35	4
HBφ10-N	10	7	9	50	5

Note: Customers provide drawing requirements, Halnn will provide customized services.

Click to return to the superior page：Hard Steel Materials CBN Tools
