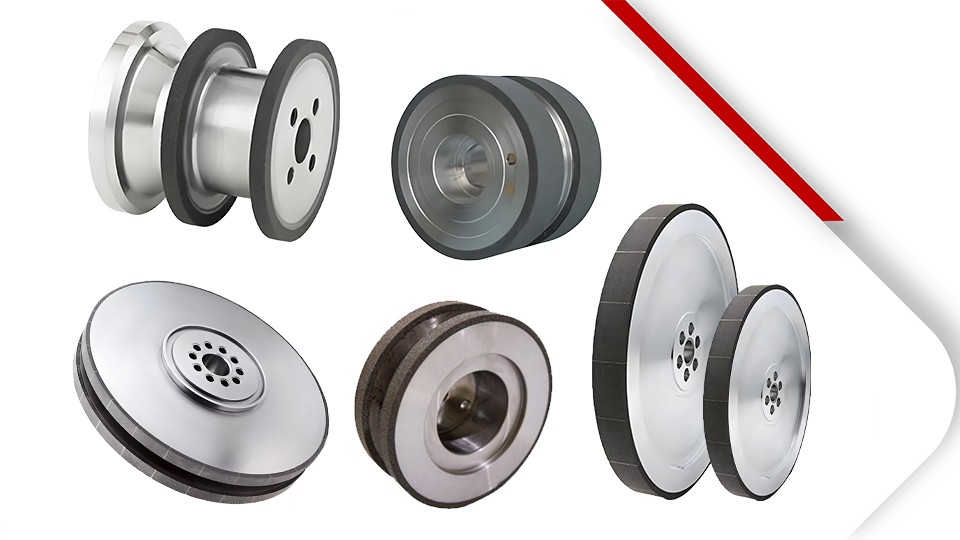

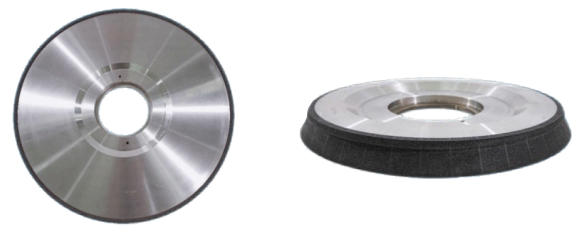

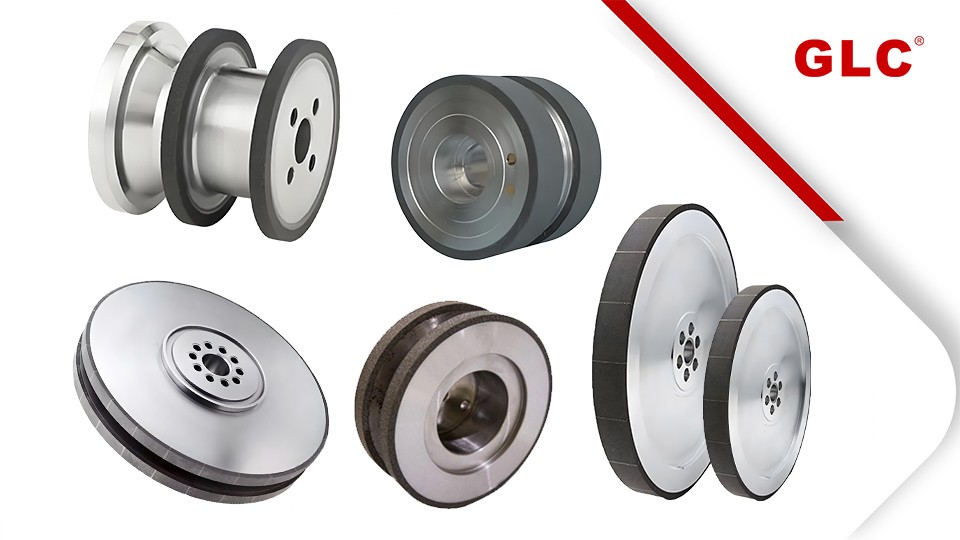

CBN grinding wheel

GLC high-speed grinding CBN grinding wheel shows excellent performance in the machining of camshaft/crankshaft, gear shaft, motor shaft, with significant advantages such as high efficiency, high precision, and high surface quality.

Click on the consulting

Product Description

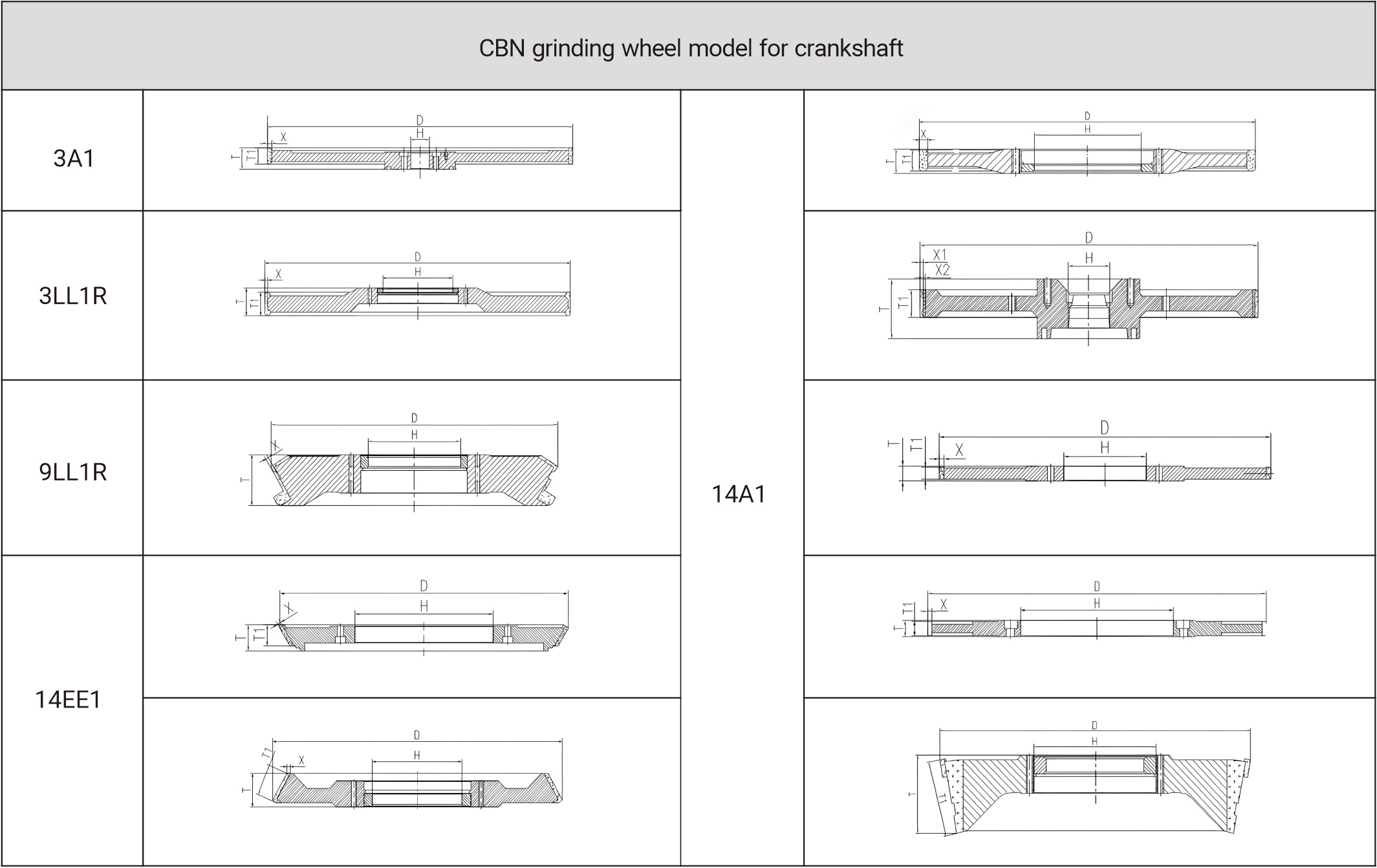

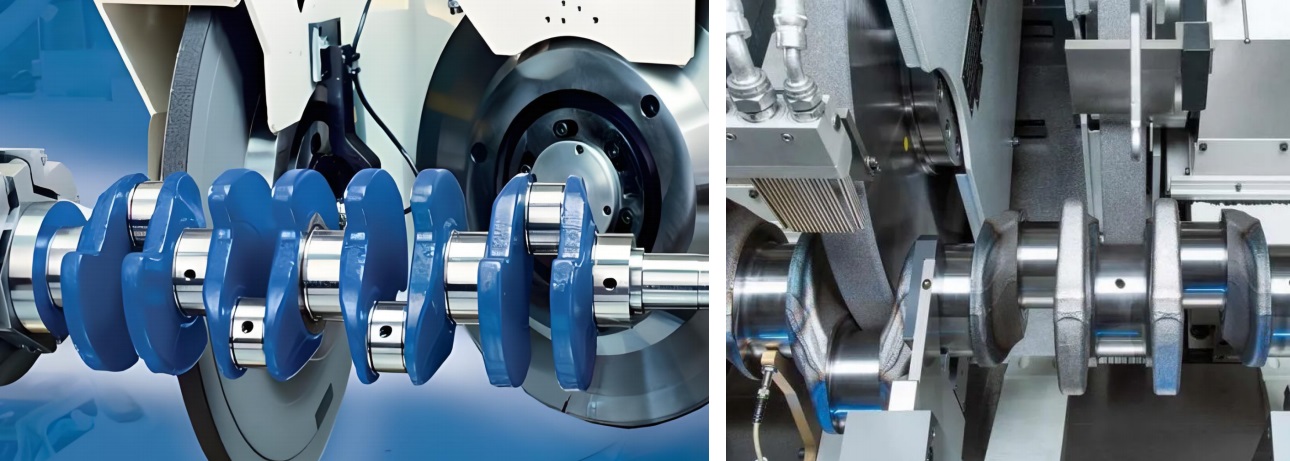

CBN grinding wheel for crankshaft

Suitable for the grinding of crank shaft main journals, connecting rod journals, and thrust faces in automotive engines. It offers high grinding efficiency, excellent wear resistance, and chemical stability, with a wheel speed of 80 m/s to 160 m/s.

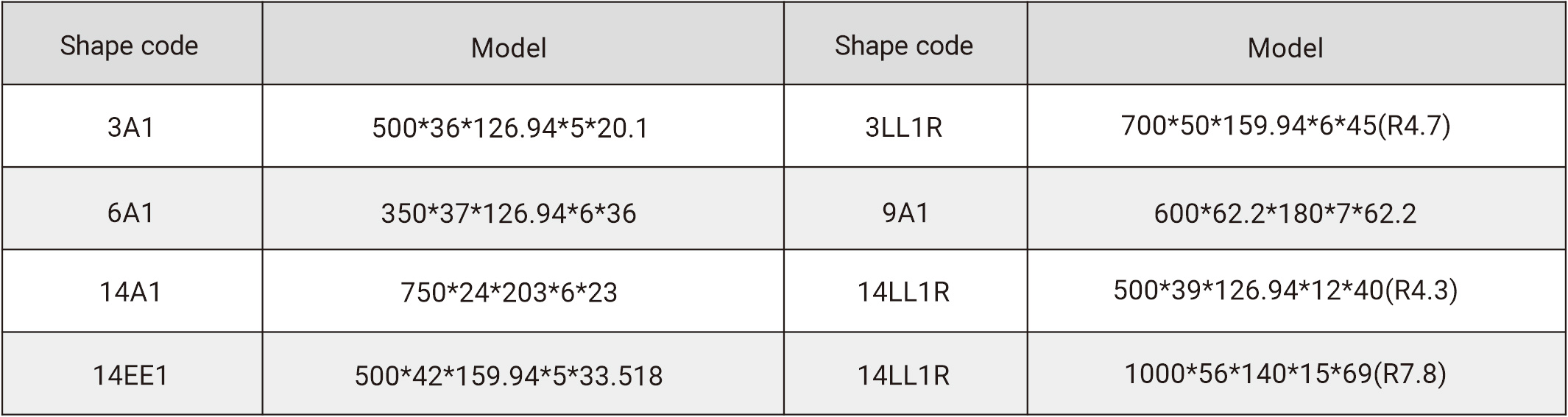

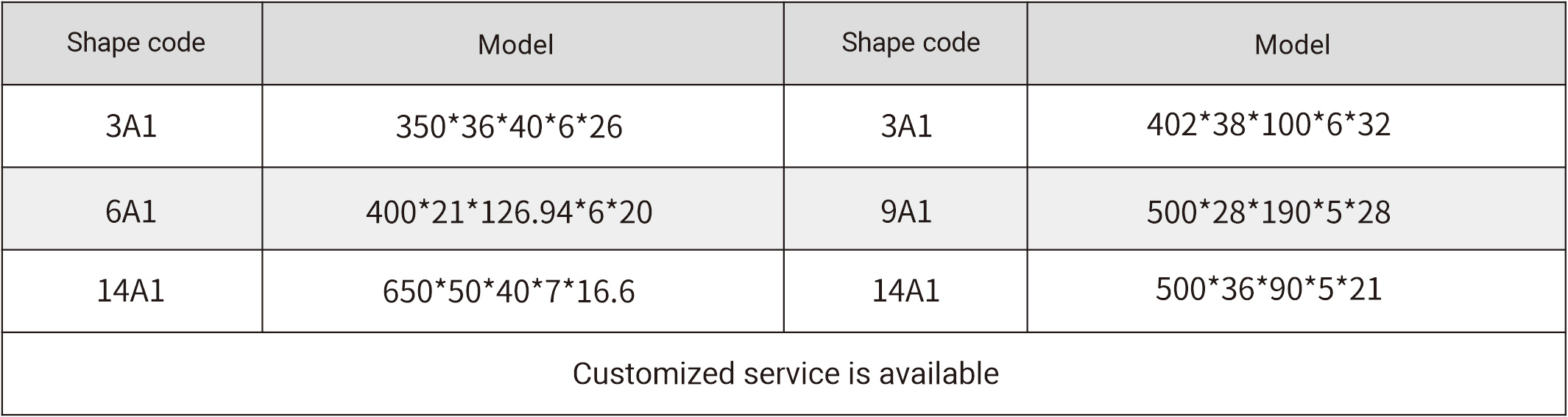

Specification

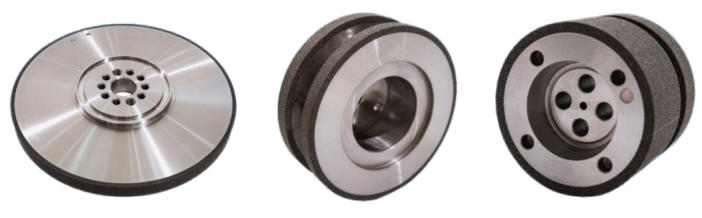

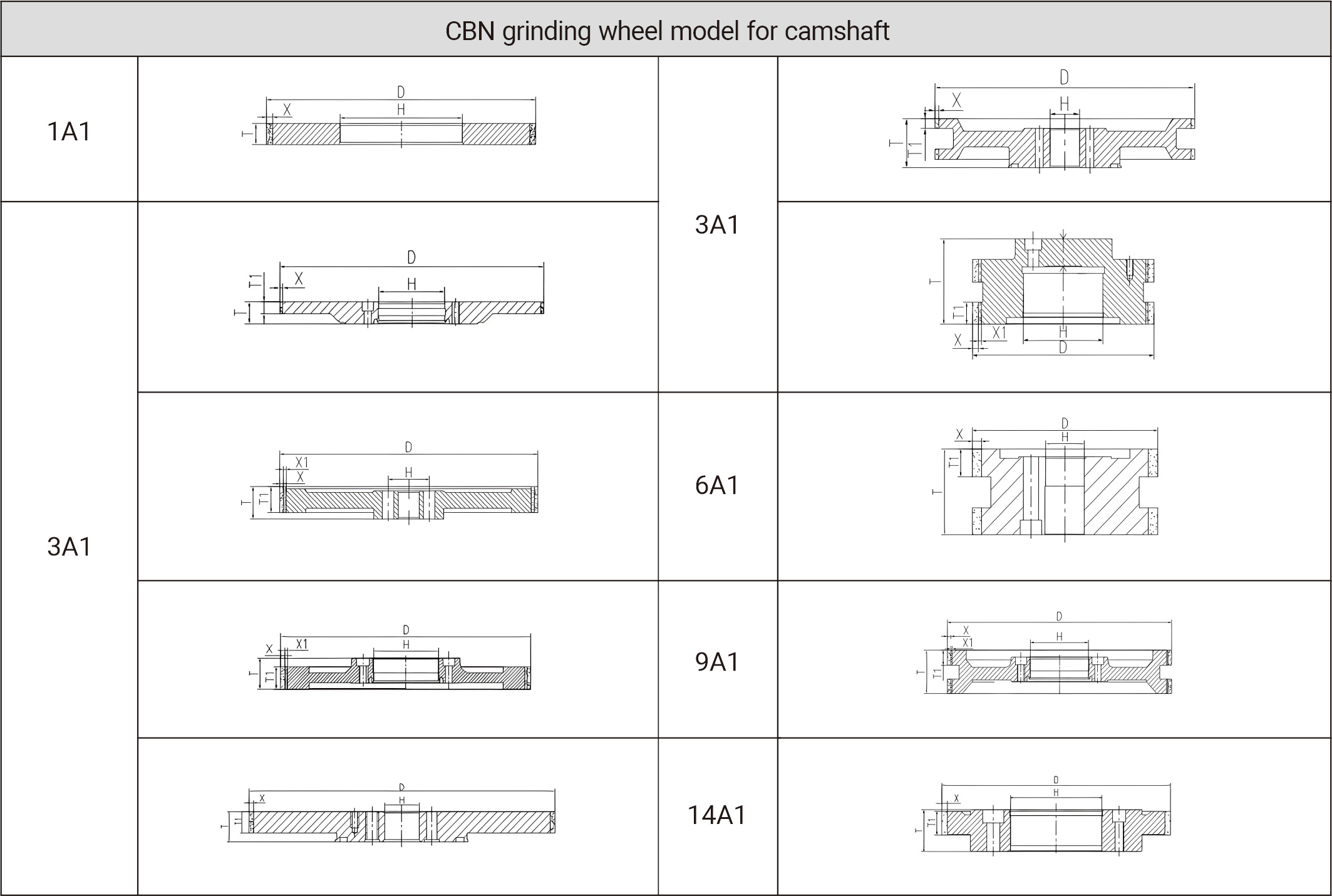

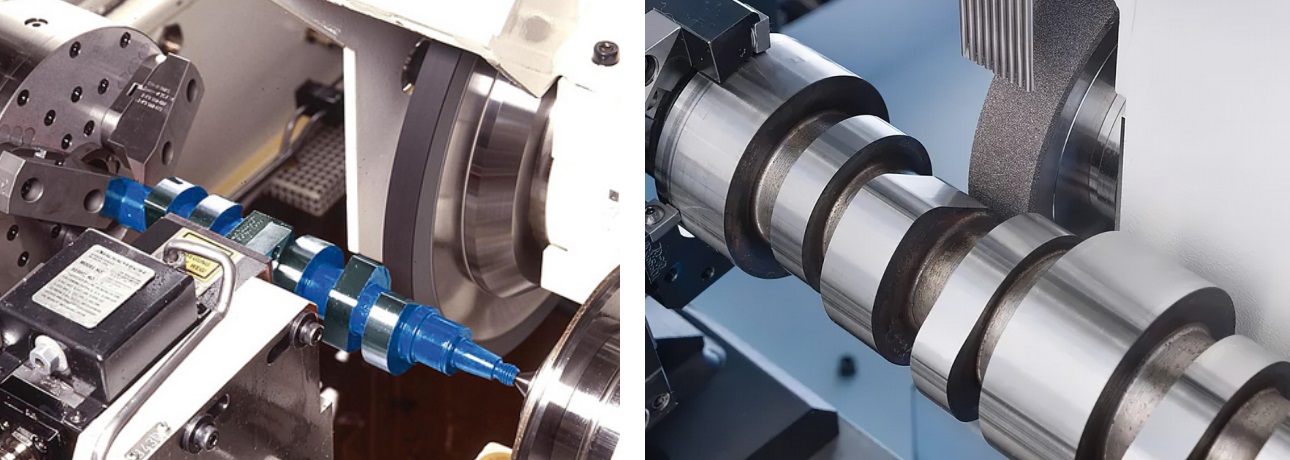

CBN grinding wheel for camshaft

Suitable for the grinding of camshaft lobes, main jourals, and oil pump gears in automotive engines. Features uniform porosity and low grinding temperatures, delivering high workpiece accuracy and superior surface finish. Wheel speed: 80 m/s to 160 m/s.

Specification

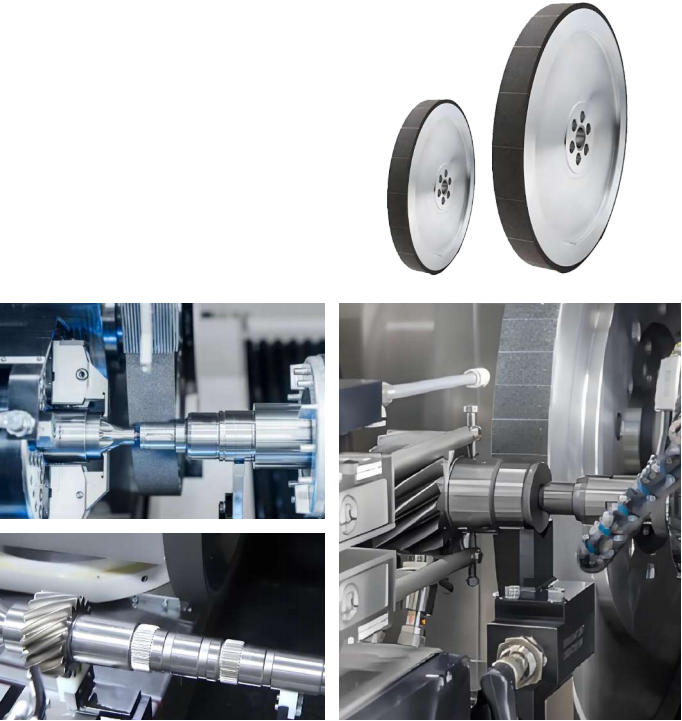

CBN grinding wheel for gear shaft

Application Field: Grinding of automotive engine transmission shafts (including outer diameter, thrust faces, shoulders, splines, etc.).

Workpiece Materials: 40Cr, 20CrMnTi, etc.

Applicable Grinding Machines: Studer, Morl, Buderus, Henbo, etc.

Grinding Wheel Characteristics: High cutting efficiency, superior material removal rate, minimal bur risk and versatility across

multiple grinding operations.

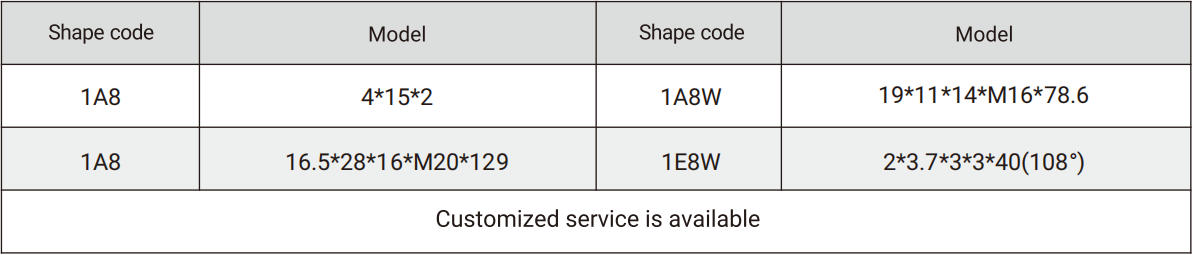

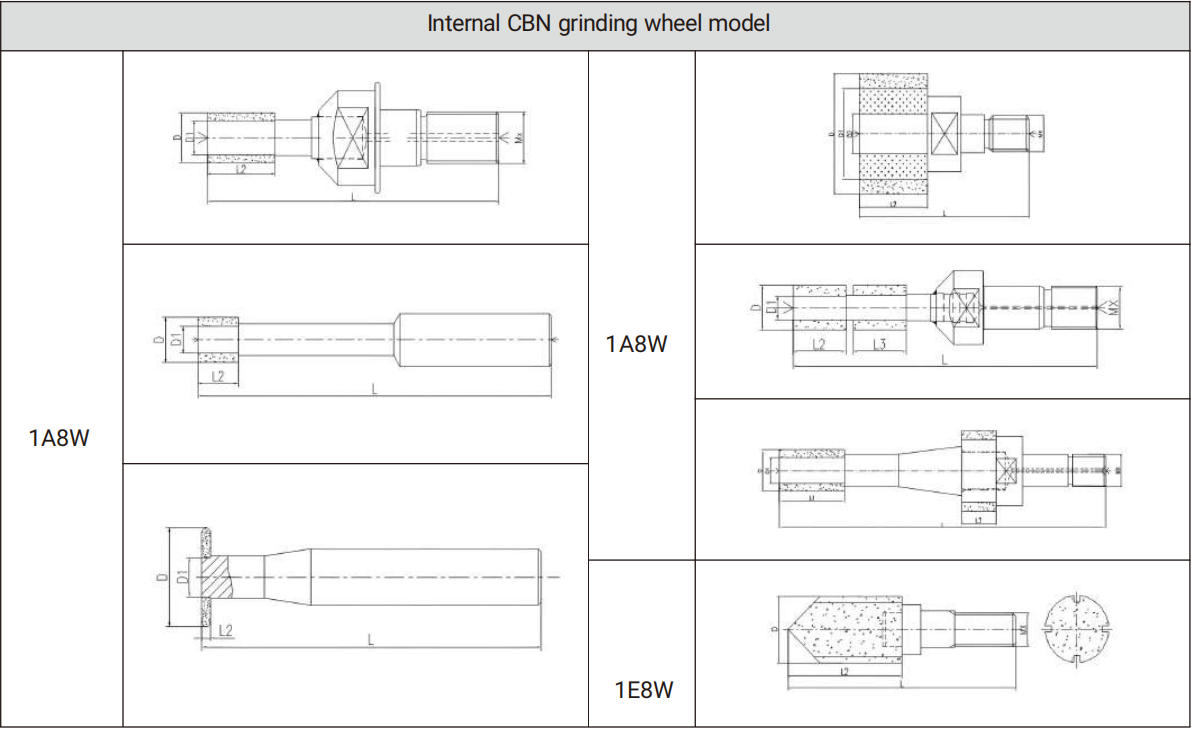

CBN Grinding Wheel for internal grinding

Suitable for automotive steering pumps, as well as stator inner circle grinding of rotary vane compressors, cyinder bore and bearing inner circle grinding of piston refrigeration compressors, used for high-precision domestic and foreign CNC inner circle grinding machines.
